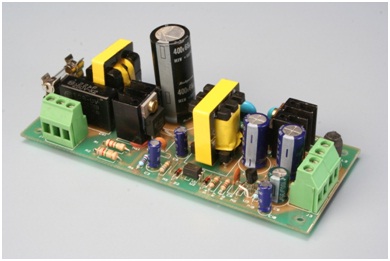

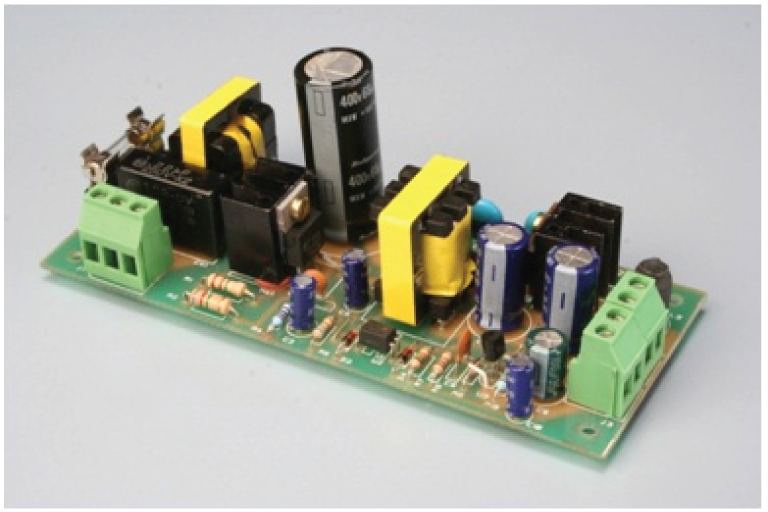

Switch Mode Power Supply
High Quality, High Efficiency, Universal Input, Single/Multiple Output, enclosed switch mode power supplies with screw terminals. Ideal for using communication computer peripherals, audio equipments, test equipments, instrumentation and business machine.
- Wide Range Universal Input
- Compact Design
- Stainless Steel/ Metal Enclosure
- Easy Installation – Screw Terminals
- High Efficiency
- Conducted EMI complies with EN55022-B
- Short Circuit and Over voltage protection
CONSTRUCTION

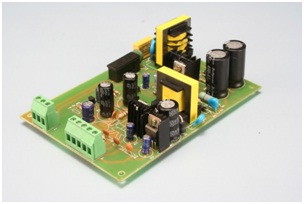

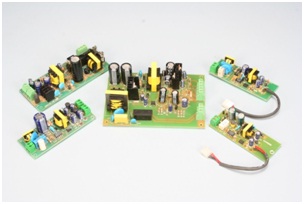

Open Frame
STANDARD SPECIFICATION
|
Switch Mode Power Supply [SMPS]
|
|||||
|
Sl No
|
Input VAC
|
Out Put
VDC volt |
Output
Amp |
Power
|
PCB Size
[Open Type] |
|
1
|
90vac to 265 vac
|
5v
|
0.5A
|
2.5w
|
74 x 35 x 23 mm |
|
2
|
90vac to 265 vac
|
5v
|
1A
|
5w
|
74 x 35 x 23 mm |
|
3
|
90vac to 265 vac
|
5v
|
2A
|
10w
|
74 x 35 x 30 mm |
|
4
|
90vac to 265 vac
|
9v
|
0.5A
|
4.5w
|
74 x 35 x 23 mm |
|
5
|
90vac to 265 vac
|
9v
|
1A
|
9w
|
75 x 40 x 30 mm |
|
6
|
90vac to 265 vac
|
9v
|
2A
|
18w
|
75 x 40 x 30 mm |
|
7
|
90vac to 265 vac
|
12v
|
0.3A
|
3.6w
|
74 x 35 x 23 mm |
|
8
|
90vac to 265 vac
|
12v
|
0.5A
|
6w
|
74 x 35 x 23 mm |
|
9
|
90vac to 265 vac
|
12v
|
1A
|
12w
|
75 x 40 x 30 mm |
|
10
|
90vac to 265 vac
|
12v
|
1.5A
|
18w
|
130 x 55 x 35 mm |
|
11
|
90vac to 265 vac
|
12v
|
2A
|
24w
|
130 x 55 x 35 mm |
|
12
|
90vac to 265 vac
|
12v
|
2.5A
|
30w
|
130 x 55 x 35 mm |
|
13
|
90vac to 265 vac
|
12v
|
3A
|
36w
|
130 x 55 x 35 mm |
|
14
|
90vac to 265 vac
|
24v
|
0.3A
|
7.2w
|
75 x 40 x 30 mm |
|
15
|
90vac to 265 vac
|
24v
|
0.5A
|
12w
|
75 x 40 x 30 mm |
|
16
|
90vac to 265 vac
|
24v
|
1A
|
24w
|
130 x 55 x 35 mm |
|
17
|
90vac to 265 vac
|
24v
|
1.5A
|
35w
|
130 x 55 x 35 mm |
|
18
|
90vac to 265 vac
|
24v
|
2A
|
48w
|
130 x 55 x 35 mm |
